Motor Control Center One Line Diagram and Feeders

Elements

About this detail

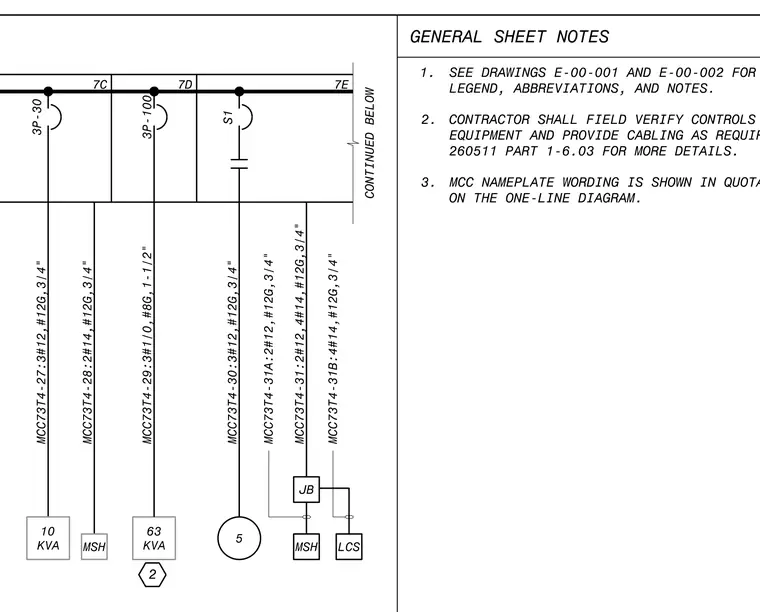

This electrical one-line diagram details motor control center feeder configurations, conduit sizes, and conductor counts for various equipment drops. Feeder circuits extend from the main bus to connected loads such as junction boxes, motor starters, and local control stations with specified ground conductors and conduit diameters. General sheet notes instruct the contractor to field verify existing equipment controls and refer to specification section 260511 for additional cabling requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
