Electrical · E-FWSVF

Ash Control Panel Wiring Diagram

About this detail

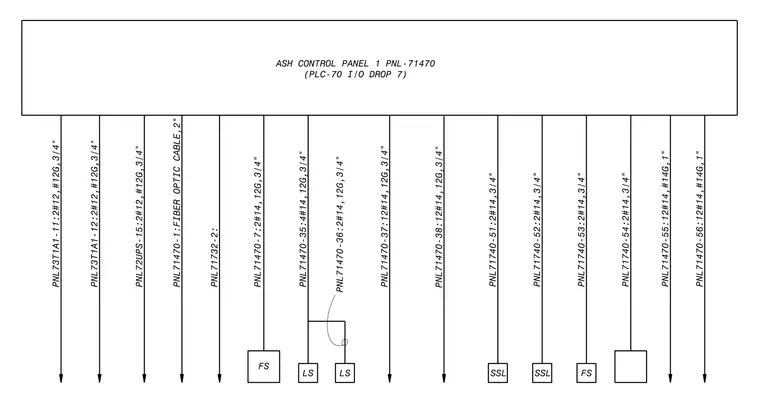

Electrical schematic illustrating the Ash Control Panel 1 labeled PNL-71470 with connected conduits, conductors, and field devices. The drawing details specific wire sizing and conduit runs including number 14 and number 12 AWG conductors, fiber optic cable, and three-quarter-inch to one-inch conduits. Interfacing field devices include flow switches, limit switches, and solid state logic controllers associated with PLC-70 input/output drop 7.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
