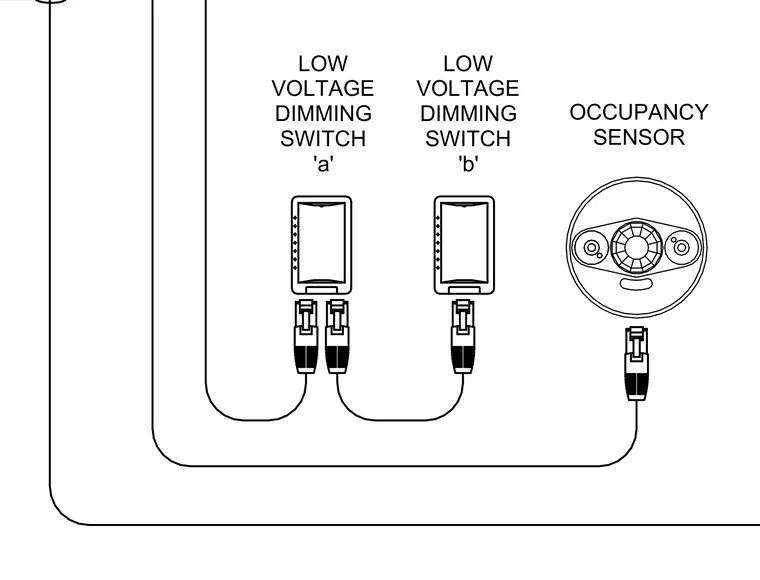

Low voltage wiring connects two low voltage dimming switches, labeled 'a' and 'b', alongside an occupancy sensor. Network cables with modular connectors link each device to individual control lines.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
