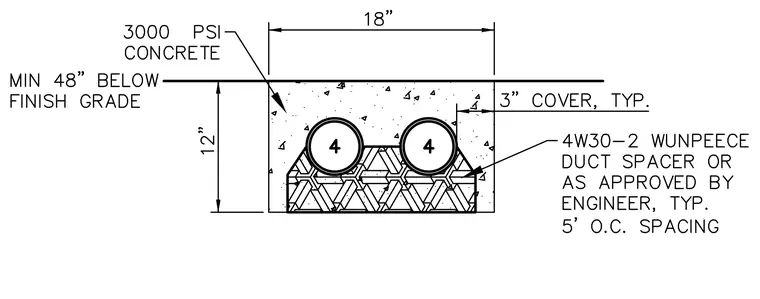

An underground electrical duct bank is encased in three thousand PSI concrete with an eighteen-inch width and a twelve-inch height, positioned a minimum of forty-eight inches below finish grade. Two four-inch conduits are supported by a 4W30-2 duct spacer, or an approved equal, spaced at five feet on center typically. Three inches of concrete cover is provided typically around the embedded conduits.
