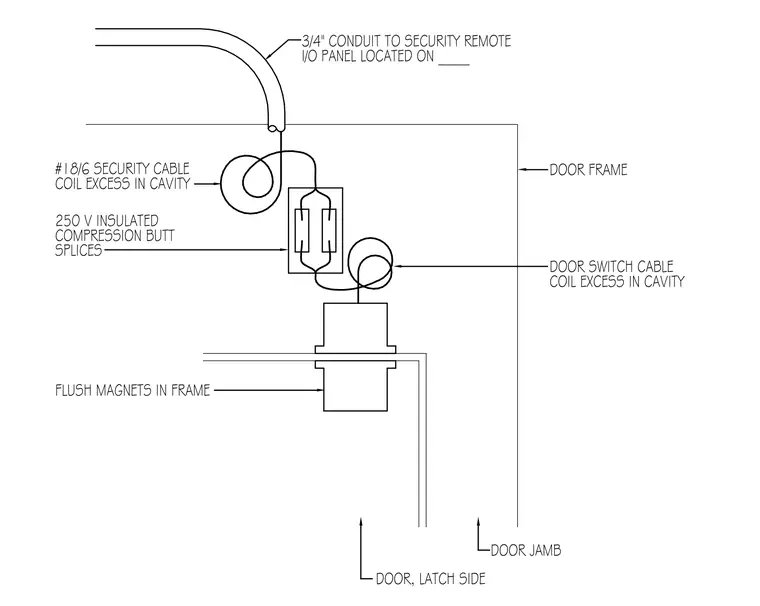

A flush-mounted magnetic door switch installs within a door frame jamb. Three-quarter-inch conduit routes security wiring to a remote input/output panel. Number eighteen-six security cable splices to the door switch cable using two hundred fifty-volt insulated compression butt splices. Excess cable from both the security cable and the door switch cable coils within the frame cavity for future maintenance. The magnetic contact sets flush into the door frame on the latch side of the door.
