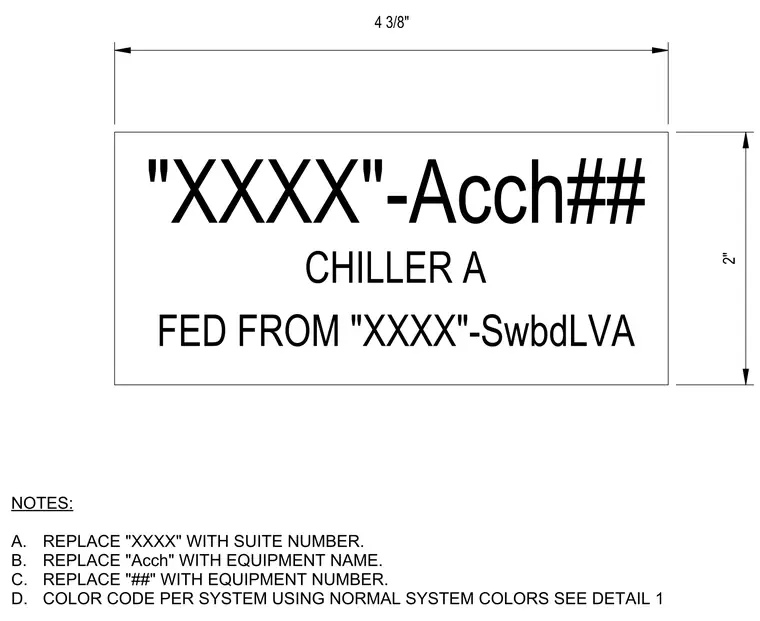

This electrical detail provides the layout and text requirements for a chiller equipment nameplate. The label measures four and three-eighths inches wide by two inches high and displays specific equipment tagging conventions. Placeholder text indicates locations for suite numbers, equipment names, and equipment numbers with power feed source designation from the low voltage switchboard. Standard installation notes require color coding per system following normal system colors and referencing detail one.
"XXXX"-Acch## CHILLER A FED FROM "XXXX"-SwbdLVA 4 3/8" 2" A. B. C. D. NOTES: REPLACE "XXXX" WITH SUITE NUMBER. REPLACE "Acch" WITH EQUIPMENT NAME. REPLACE "##" WITH EQUIPMENT NUMBER. COLOR CODE PER SYSTEM USING NORMAL SYSTEM COLORS SEE DETAIL 1
