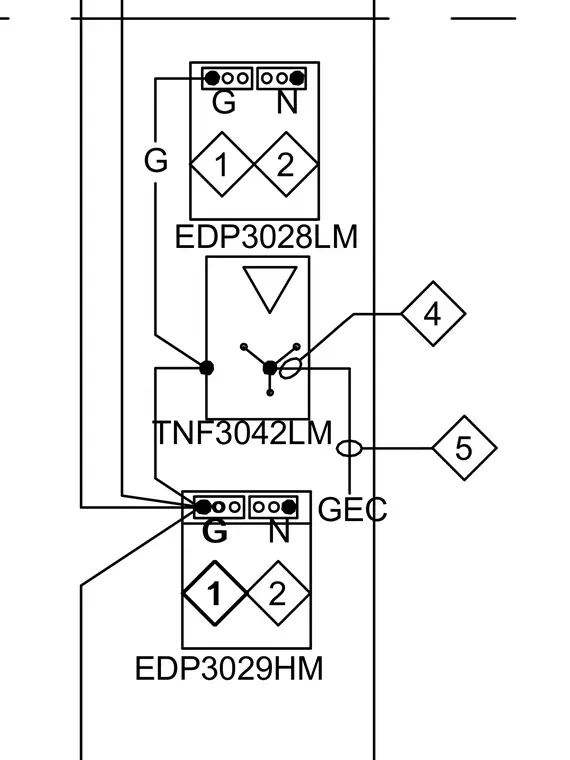

Electrical room equipment layout schematic diagram showing panelboard connections and ground electrode conductors. The diagram connects panelboards EDP3028LM and EDP3029HM to unit TNF3042LM with ground and neutral conductors. A ground electrode conductor GEC links to the central unit with numbered reference tags.
