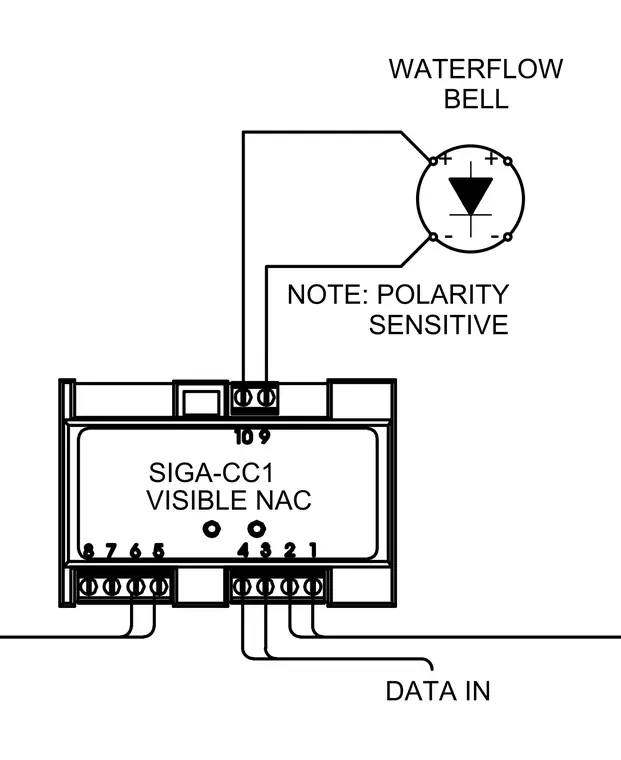

A polarity-sensitive waterflow bell connects to terminal outputs nine and ten of a SIGA-CC1 visible notification appliance circuit module. Data input connections route through the lower terminal block. Terminal numbers one through ten organize the module wiring interface.
