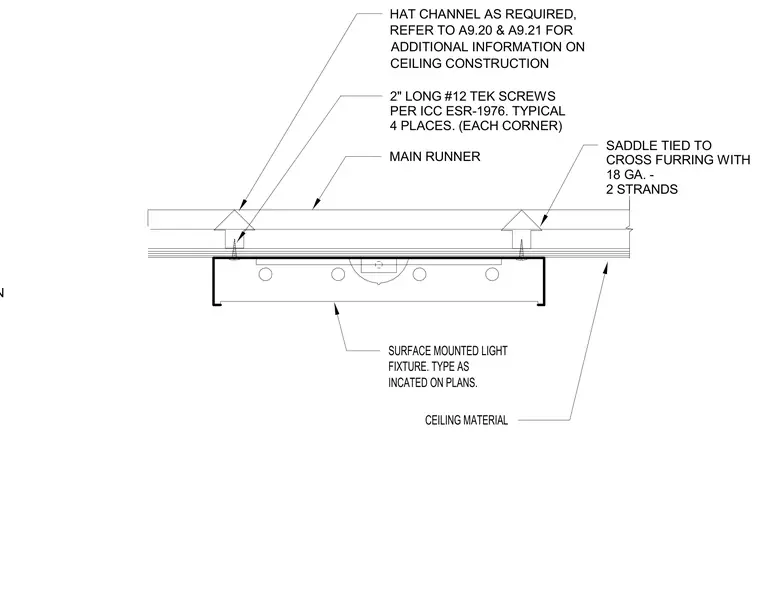

A surface-mounted light fixture is secured to ceiling material with two-inch-long number twelve self-drilling screws at four typical locations in each corner, complying with ICC ESR-1976. The ceiling suspension system features main runners and cross furring, with hat channels providing required bracing. Main runners are saddle tied to the cross furring using eighteen-gauge, two-strand tie wire.
BRACING TO BE PROVIDED IN HAT CHANNEL AS REQUIRED, REFER TO A9.20 & A9.21 FOR ADDITIONAL INFORMATION ON CEILING CONSTRUCTION FIXTURE. TYPE AS SURFACE MOUNTED LIGHT INCATED ON PLANS. CEILING MATERIAL 2" LONG #12 TEK SCREWS PER ICC ESR-1976. TYPICAL 4 PLACES. (EACH CORNER) MAIN RUNNER SADDLE TIED TO CROSS FURRING WITH 18 GA. - 2 STRANDS
