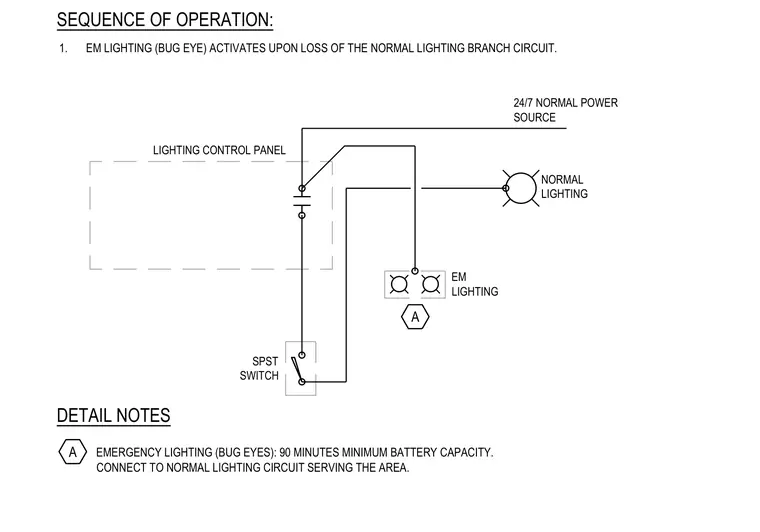

Emergency lighting activates automatically upon the loss of the normal lighting branch circuit. The system connects to a 24/7 normal power source and a lighting control panel routed through a single-pole single-throw switch. Emergency lighting units require a minimum battery capacity of ninety minutes and must connect directly to the normal lighting circuit serving the area.
NORMAL LIGHTING SPST SWITCH 1. EM LIGHTING (BUG EYE) ACTIVATES UPON LOSS OF THE NORMAL LIGHTING BRANCH CIRCUIT. SEQUENCE OF OPERATION: 24/7 NORMAL POWER SOURCE DETAIL NOTES EMERGENCY LIGHTING (BUG EYES): 90 MINUTES MINIMUM BATTERY CAPACITY. CONNECT TO NORMAL LIGHTING CIRCUIT SERVING THE AREA. LIGHTING CONTROL PANEL EM LIGHTING A A
