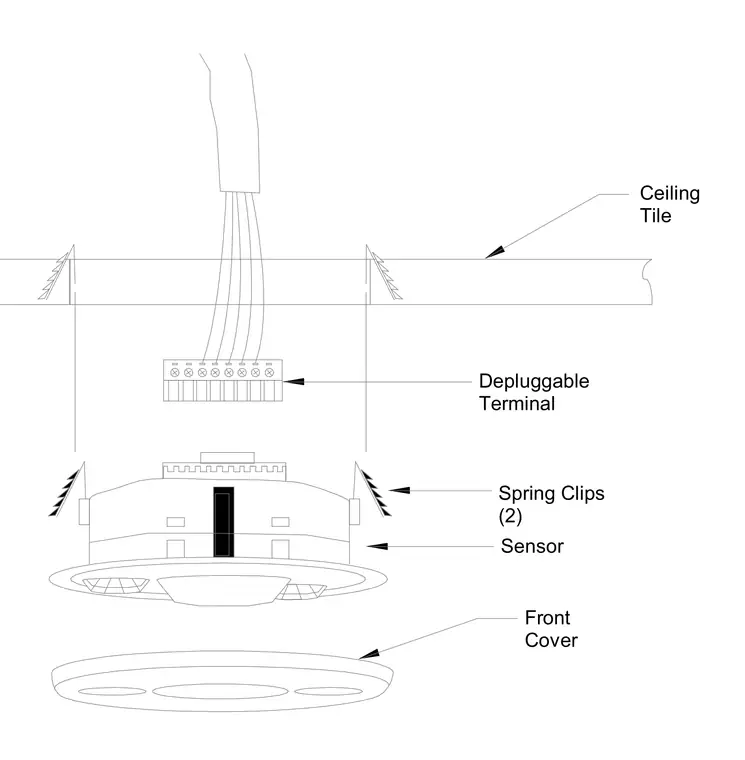

A ceiling sensor is recessed into a ceiling tile and secured using two spring clips. Electrical wiring connects to the unit via a depluggable terminal block. A front cover conceals the housing from the finished room side.
