Electrical · E-FJPCV

Electrical Protection and Control Schematic

About this detail

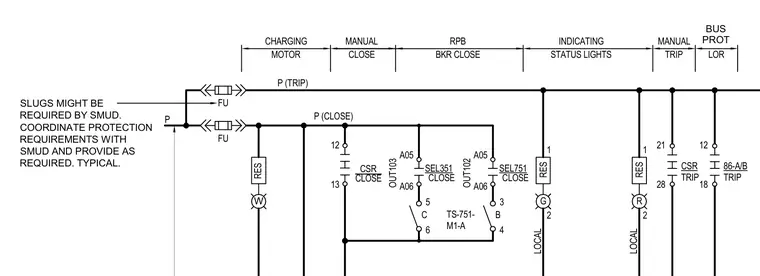

Control wiring for a circuit breaker features charging motor, manual close, remote pushbutton close, indicating status lights, manual trip, and bus protection functions. Fuses provide circuit protection while SEL351 and SEL751 relay contacts manage tripping and closing operations. Notes indicate that slugs might be required by the local utility provider, requiring protection coordination and implementation as necessary.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
