Raceway Hanger and Beam Clamp Assembly Details

Elements

About this detail

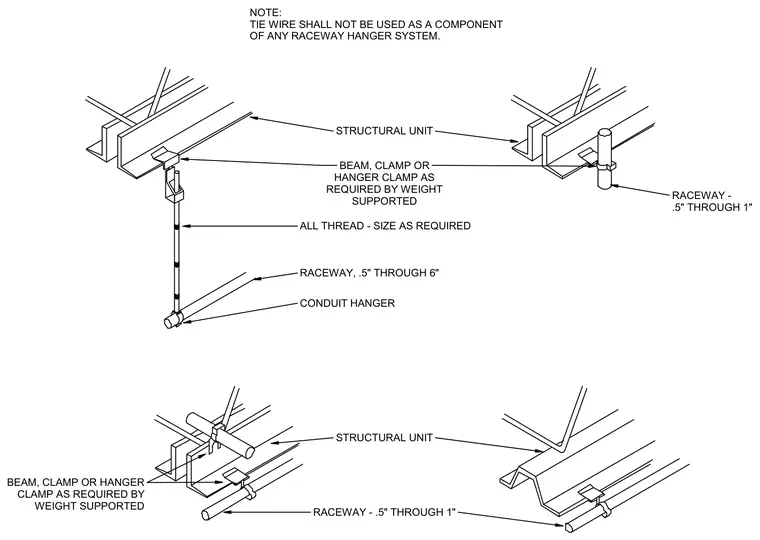

These isometric details illustrate approved methods for supporting electrical raceways from structural units using beam clamps, hanger clamps, and threaded rod suspensions. The installation prohibits the use of tie wire as a component of any raceway hanger system. Beam clamps or hanger clamps are sized according to the weight of the supported raceway, which accommodates sizes ranging from 0.5 inches to 6 inches using conduit hangers and all-thread rods sized as required.
