Conduit Support Type 21 Conceptual Detail

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage

About this detail

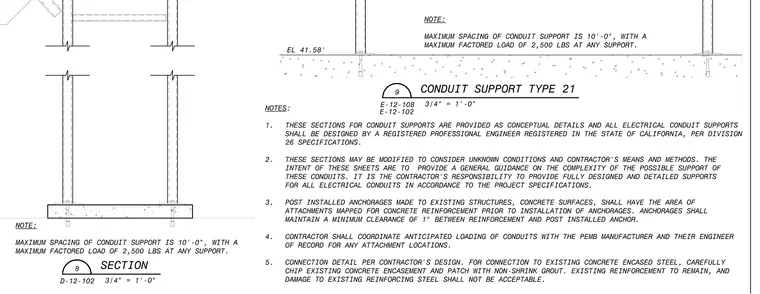

An electrical conduit support assembly anchors to a concrete structure at elevation 41.58 feet, featuring post-installed anchorages designed for a maximum factored load of 2,500 pounds and a maximum support spacing of 10 feet. Post-installed anchorages into existing concrete require reinforcement mapping prior to installation to maintain a minimum clearance of 1 inch from reinforcing steel. Connections to existing concrete-encased steel require careful chipping of the concrete encasement and patching with non-shrink grout while leaving existing reinforcement undamaged. All supports must be designed by a registered professional engineer in the State of California per Division 26 specifications, with the contractor coordinating anticipated loads with the pre-engineered metal building manufacturer.
