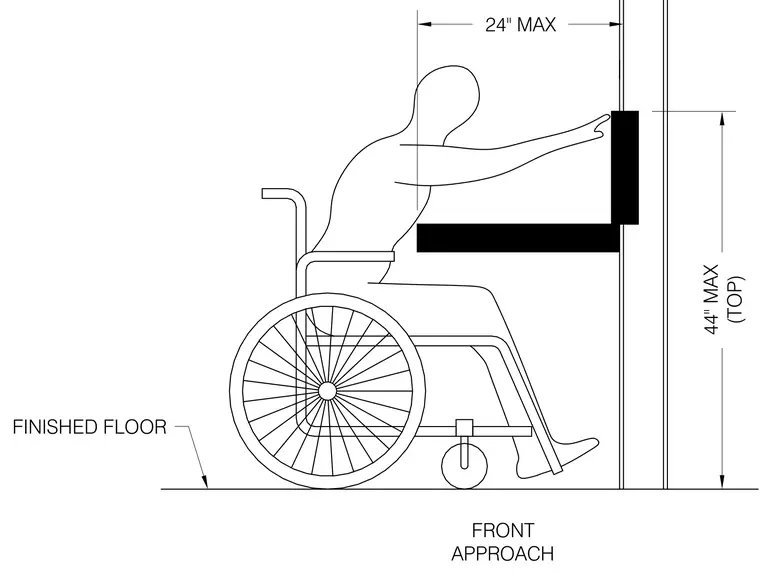

Maximum mounting height and reach range limitations for electrical devices and controls positioned above an obstruction for a front wheelchair approach. The finished floor serves as reference for vertical dimensions. The maximum reach depth over the obstruction is twenty-four inches, and the maximum top operable part height is forty-four inches above the finished floor.
