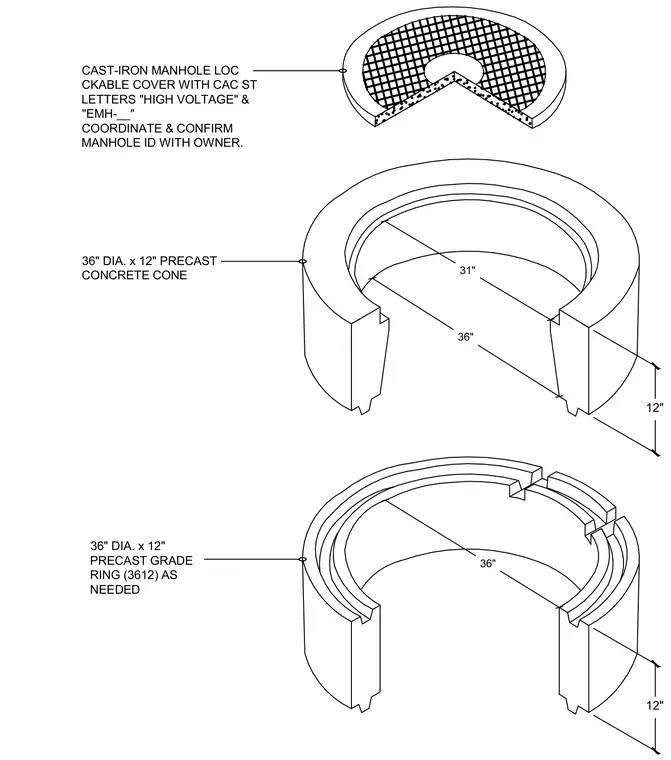

An electrical manhole access assembly features a 36-inch diameter by 12-inch precast concrete grade ring stacked atop a 36-inch diameter by 12-inch precast concrete cone with a 31-inch interior opening. The assembly is capped by a cast-iron lockable manhole cover featuring cast letters "HIGH VOLTAGE" and "EMH-__", with the manhole ID coordinated and confirmed with the owner. Precast grade rings are added as needed to adjust final grade elevation.
36" 36" 31" 12" 12" CAST-IRON MANHOLE LOC CKABLE COVER WITH CAC ST LETTERS "HIGH VOLTAGE" & "EMH-__" COORDINATE & CONFIRM MANHOLE ID WITH OWNER. 36" DIA. x 12" PRECAST GRADE RING (3612) AS NEEDED 36" DIA. x 12" PRECAST CONCRETE CONE
