Electrical · E-FAT6T

Switched Emergency Egress Wiring

Elements

About this detail

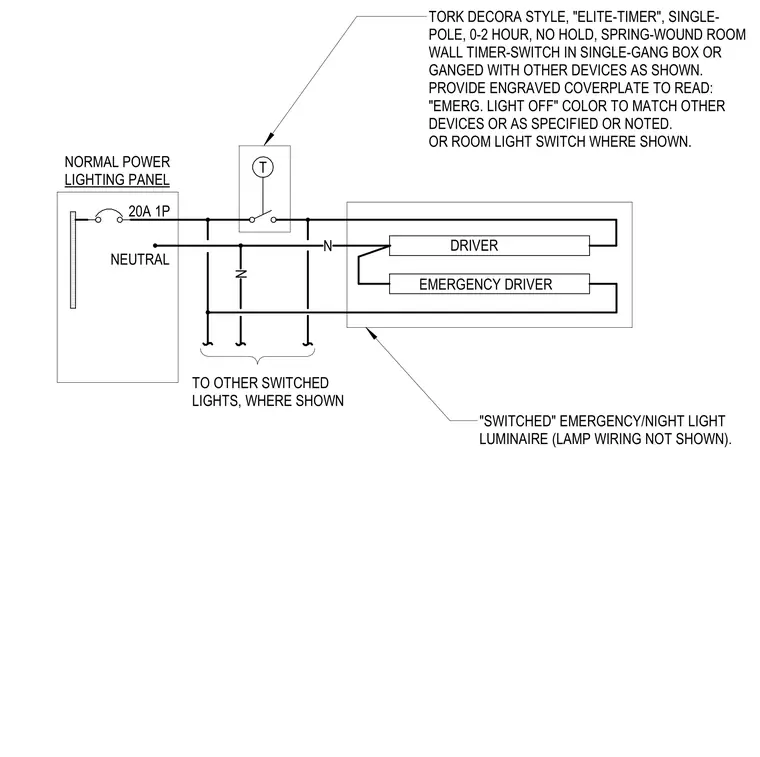

A normal power lighting panel connects to a switched emergency or night light luminaire through a spring-wound room wall timer switch. A twenty-amp single-pole circuit feeds from the normal power panel through a decora-style single-pole zero-to-two-hour spring-wound timer switch mounted in a single-gang box. The switched output routes to the luminaire containing standard and emergency drivers with neutral wiring routed appropriately. An engraved coverplate reading 'EMERG. LIGHT OFF' is specified for the timer switch. Connections continue to other switched lights where shown on the drawings.
