Video surveillance system viewing and monitoring through network connected, owner furnished personal computers for server and storage. The network routes through a security network switch and security system patch panels using CAT6 cables and OM3 outdoor fiber. Fiber optic patch panels and fiber transceivers manage outdoor pole mounted camera connections terminated with LC connectors. Surge suppression is provided for the security patch panel. Building mounted cameras receive 24VAC power.

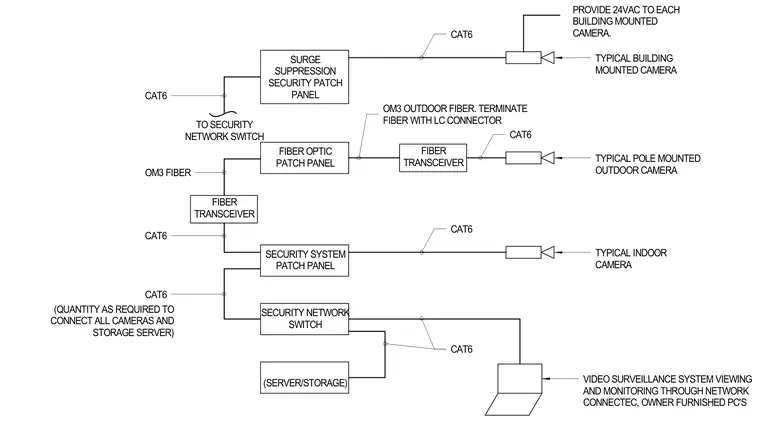

VIDEO SURVEILLANCE SYSTEM VIEWING AND MONITORING THROUGH NETWORK CONNECTEC, OWNER FURNISHED PC'S (SERVER/STORAGE) SECURITY NETWORK SWITCH SECURITY SYSTEM PATCH PANEL TYPICAL INDOOR CAMERA FIBER TRANSCEIVER FIBER OPTIC PATCH PANEL TYPICAL POLE MOUNTED OUTDOOR CAMERA FIBER TRANSCEIVER CAT6 OM3 OUTDOOR FIBER. TERMINATE FIBER WITH LC CONNECTOR OM3 FIBER CAT6 CAT6 CAT6 (QUANTITY AS REQUIRED TO CONNECT ALL CAMERAS AND STORAGE SERVER) CAT6 SURGE SUPPRESSION SECURITY PATCH PANEL TYPICAL BUILDING MOUNTED CAMERA CAT6 CAT6 TO SECURITY NETWORK SWITCH PROVIDE 24VAC TO EACH BUILDING MOUNTED CAMERA.
