Tie wire shall not be used as a component of any raceway hanger system. Structural units support raceways ranging from half-inch through six-inch sizes using beam clamps or hanger clamps sized as required by the supported weight. Threaded rod is sized as required to connect beam clamps to conduit hangers. Alternate configurations secure smaller half-inch through one-inch raceways directly with beam or flange clamps.

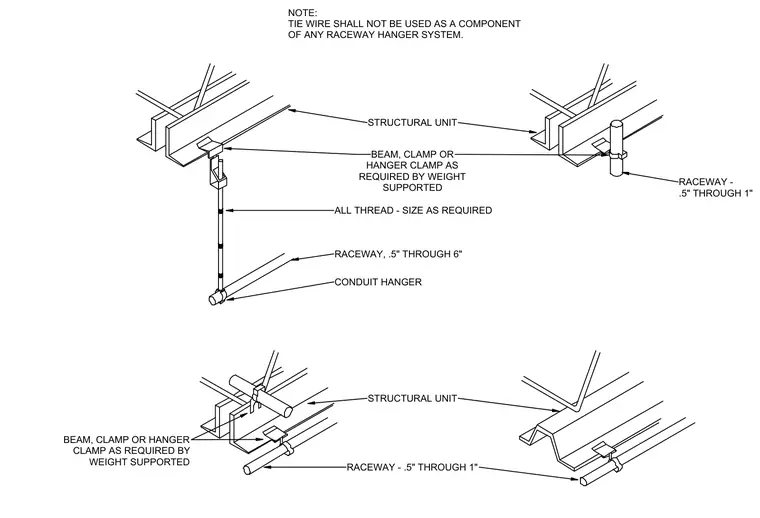

NOTE: TIE WIRE SHALL NOT BE USED AS A COMPONENT OF ANY RACEWAY HANGER SYSTEM. STRUCTURAL UNIT BEAM, CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED STRUCTURAL UNIT RACEWAY - .5" THROUGH 1" RACEWAY - .5" THROUGH 1" BEAM, CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED CONDUIT HANGER RACEWAY, .5" THROUGH 6" ALL THREAD - SIZE AS REQUIRED
