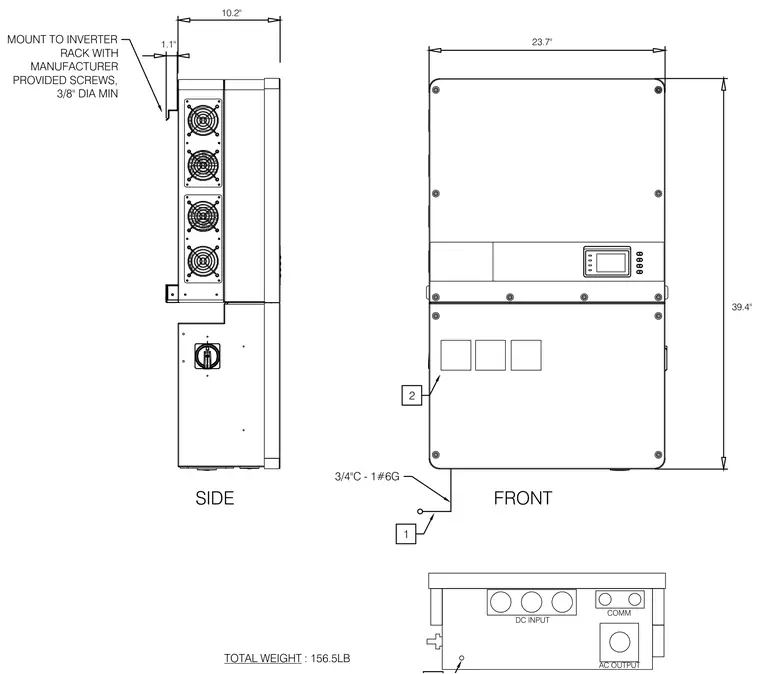

The photovoltaic inverter unit measures thirty-nine point four inches in height, twenty-three point seven inches in width, and ten point two inches in depth with a total weight of one hundred fifty-six point five pounds. It mounts to the inverter rack using manufacturer-provided screws with a three-eighths inch minimum diameter. Conduit connections at the bottom include direct current input, communication, and alternating current output ports. An equipment grounding conductor uses a three-quarter-inch conduit with one number six gauge wire connected to the grounding point.
1 DC INPUT COMM AC OUTPUT FRONT SIDE 2 MOUNT TO INVERTER RACK WITH MANUFACTURER PROVIDED SCREWS, 3/8" DIA MIN 10.2" 1.1" 23.7" 39.4" TOTAL WEIGHT : 156.5LB 3/4"C - 1#6G
