Electrical · E-F6ZWJ

Motor Starter Control Wiring Diagram

Elements

About this detail

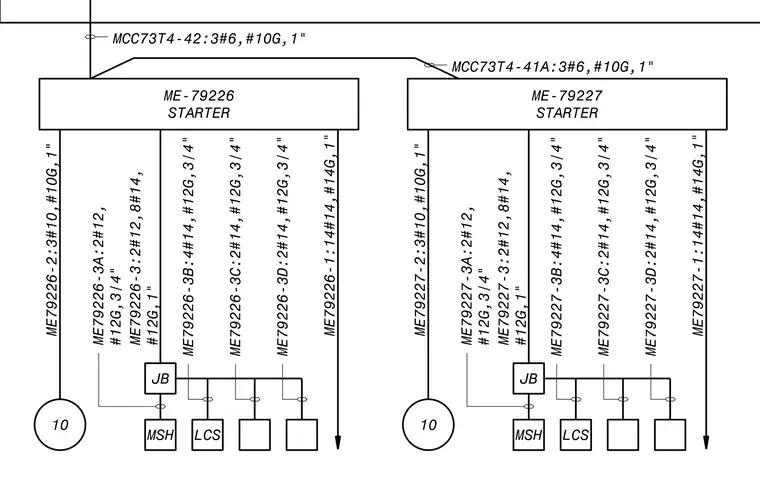

Electrical schematic depicting motor starters ME-79226 and ME-79227 connected to feeder circuits MCC73T4-42 and MCC73T4-41A. Each starter branches into multiple control circuits routed through specified conduits containing numbered conductors and ground wires. Junction boxes (JB), local control stations (LCS), and motor starter housings (MSH) are integrated into the wiring layout. Conductor sizes range from number 14 to number 6 wire with corresponding conduit sizes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
