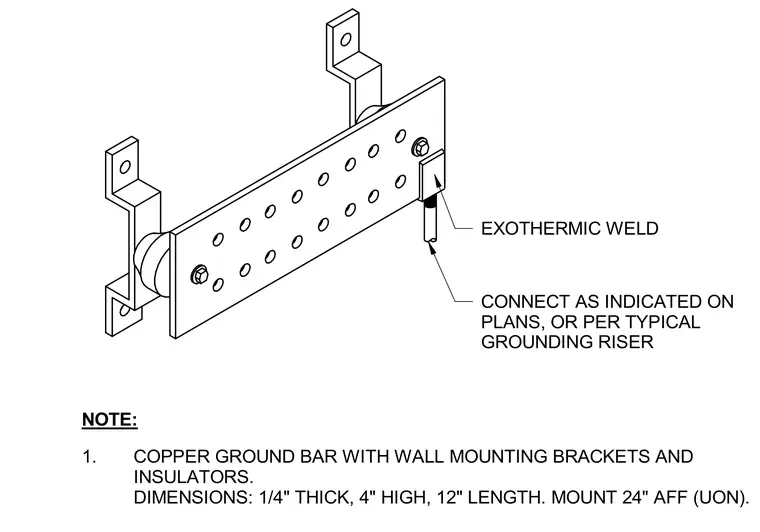

A copper ground bar measuring one-quarter inch thick, four inches high, and twelve inches long is mounted to the wall with designated wall mounting brackets and insulators. The assembly is typically positioned twenty-four inches above finished floor unless otherwise noted. A grounding conductor connects to the bar via an exothermic weld as indicated on the electrical plans or per typical grounding riser requirements.
1. COPPER GROUND BAR WITH WALL MOUNTING BRACKETS AND INSULATORS. DIMENSIONS: 1/4" THICK, 4" HIGH, 12" LENGTH. MOUNT 24" AFF (UON). EXOTHERMIC WELD CONNECT AS INDICATED ON PLANS, OR PER TYPICAL GROUNDING RISER NOTE:
