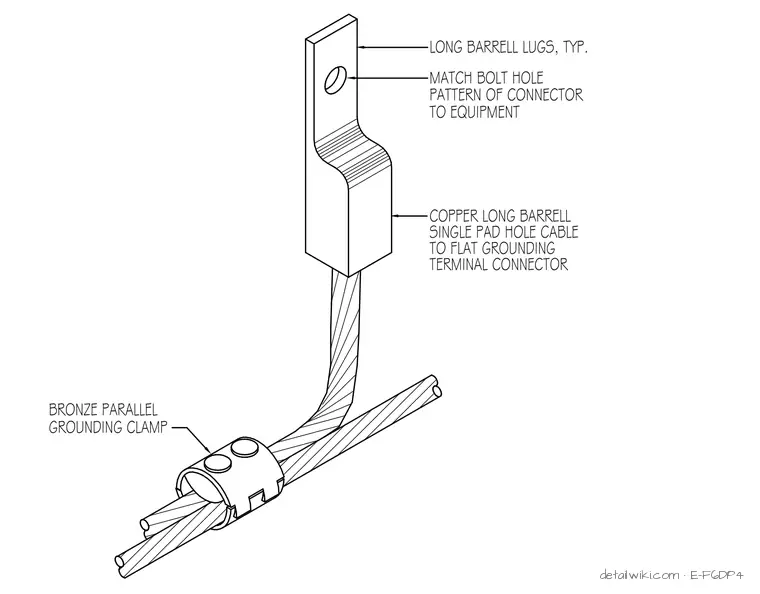

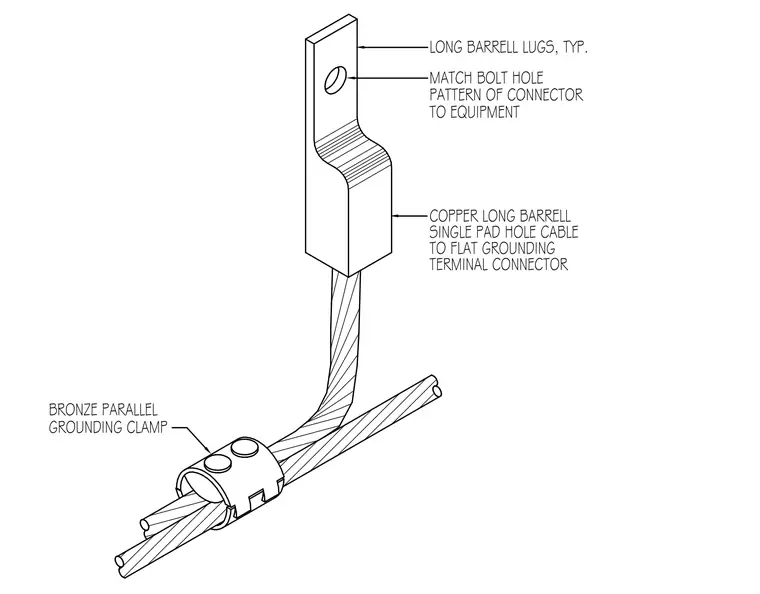

A copper long barrel single pad hole cable-to-flat grounding terminal connector terminates the equipment, utilizing a long barrel lug configuration. The bolt hole pattern on the lug must match the connector to the equipment. A bronze parallel grounding clamp secures the grounding conductor to the main grounding electrode or equipment grounding bus, facilitating a reliable electrical connection.
