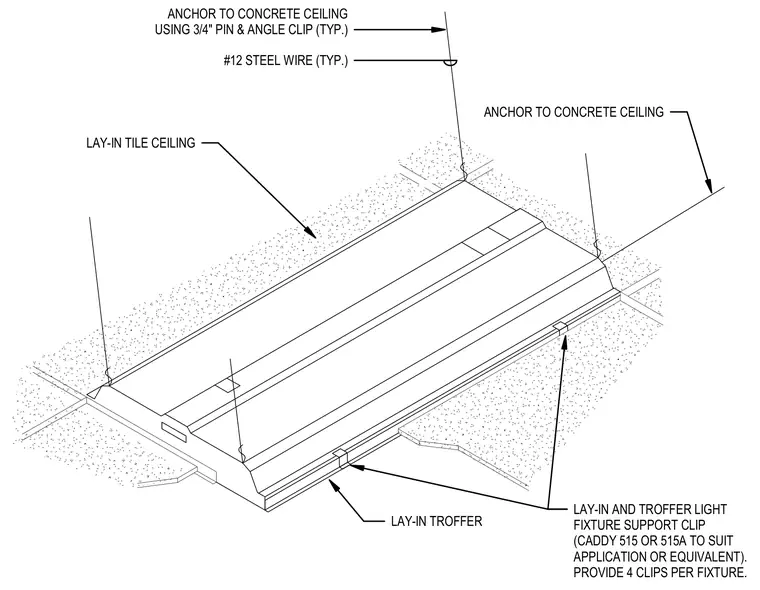

A lay-in troffer light fixture is suspended below a lay-in tile ceiling using number twelve steel wire hung from the concrete ceiling. Four lay-in and troffer light fixture support clips, specifically Caddy 515 or 515A or an equivalent, are attached to each fixture. The steel wires secure to the concrete ceiling using three-quarter-inch pins and angle clips. Four total suspension points connect each fixture to the overhead concrete structure.
LAY-IN AND TROFFER LIGHT FIXTURE SUPPORT CLIP (CADDY 515 OR 515A TO SUIT APPLICATION OR EQUIVALENT). PROVIDE 4 CLIPS PER FIXTURE. LAY-IN TROFFER LAY-IN TILE CEILING ANCHOR TO CONCRETE CEILING USING 3/4" PIN & ANGLE CLIP (TYP.) #12 STEEL WIRE (TYP.) ANCHOR TO CONCRETE CEILING
