Electrical Distribution One-Line Diagram

Materials

About this detail

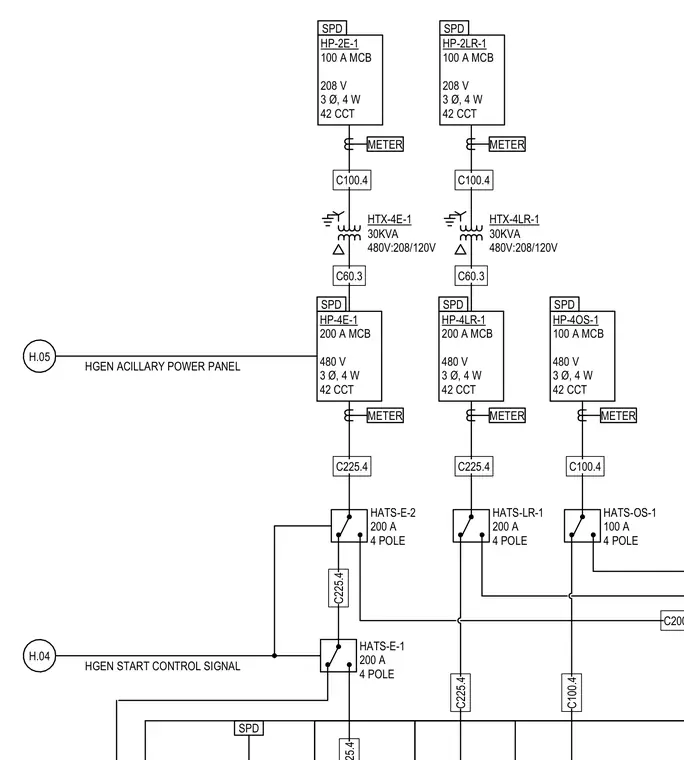

An electrical distribution diagram details the interconnection of power panels, transformers, and meters including surge protective devices. The system incorporates multiple distribution panels such as HP-4E-1 rated at 200 A main circuit breaker with 480 V, three-phase, 4-wire, 42-circuit capacity, and HP-2E-1 rated at 100 A main circuit breaker with 208 V, three-phase, 4-wire, 42-circuit capacity. Step-down transformers like HTX-4E-1 provide 30 kVA capacity converting 480V to 208/120V. Four-pole switches including HATS-E-1 and HATS-OS-1 manage specific feeds alongside emergency generator start control signals and ancillary power connections.
