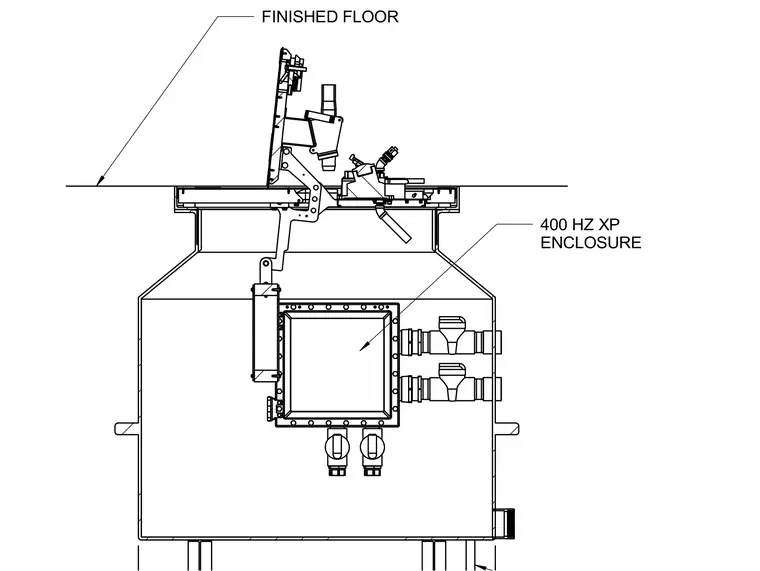

A prefabricated 400Hz pit assembly is installed flush with the finished floor level. The unit features an explosion-proof enclosure with integrated conduit and drainage connections housed within the pit structure. The access cover opens upward to provide service clearance for aircraft ground power connections.
