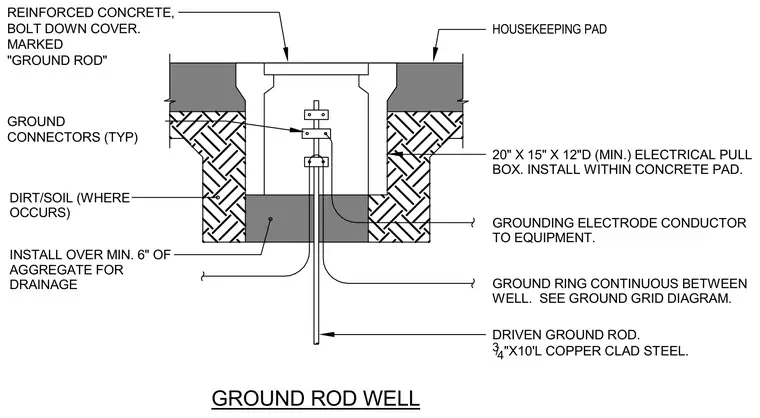

An electrical pull box measuring twenty by fifteen by twelve inches deep is installed within a reinforced concrete housekeeping pad. A three-quarter-inch by ten-foot-long copper clad steel ground rod is driven vertically through the bottom of the well. Ground connectors tie the driven rod to the grounding electrode conductor running to equipment and to a continuous ground ring. The entire well assembly rests over a minimum of six inches of aggregate for drainage.
HOUSEKEEPING PAD DIRT/SOIL (WHERE OCCURS) 20" X 15" X 12"D (MIN.) ELECTRICAL PULL BOX. INSTALL WITHIN CONCRETE PAD. DRIVEN GROUND ROD. 3/4 "X10'L COPPER CLAD STEEL. REINFORCED CONCRETE, BOLT DOWN COVER. MARKED "GROUND ROD" GROUND CONNECTORS (TYP) GROUNDING ELECTRODE CONDUCTOR TO EQUIPMENT. GROUND RING CONTINUOUS BETWEEN WELL. SEE GROUND GRID DIAGRAM. GROUND ROD WELL INSTALL OVER MIN. 6" OF AGGREGATE FOR DRAINAGE
