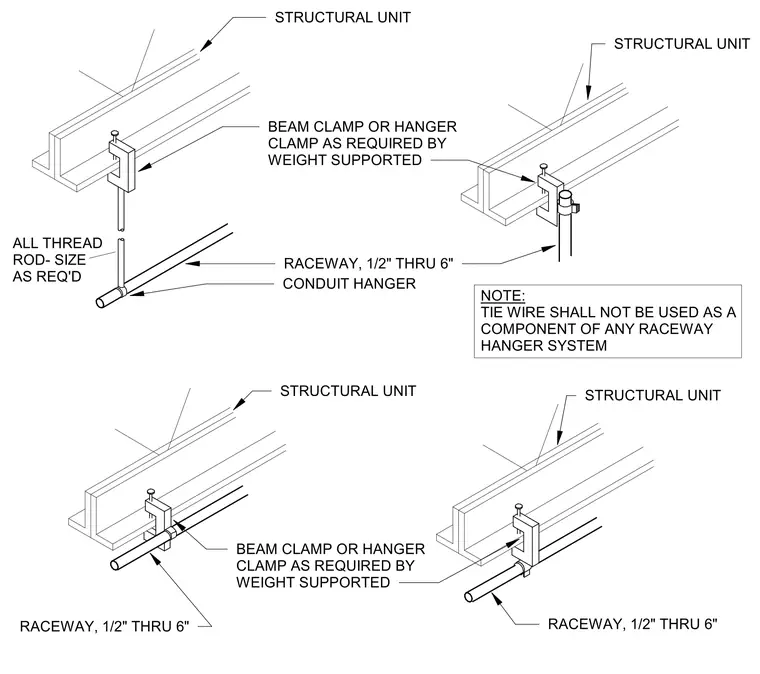

Various methods of supporting electrical raceways and conduits ranging from one-half inch to six inches in diameter from overhead structural units. A beam clamp or hanger clamp is secured to the structural member and sized according to the weight of the supported raceway. An all-thread rod of required size extends downward to a conduit hanger supporting the raceway. Tie wire is explicitly prohibited from being used as a component of any raceway hanger system.
BEAM CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED STRUCTURAL UNIT ALL THREAD ROD- SIZE AS REQ'D RACEWAY, 1/2" THRU 6" CONDUIT HANGER STRUCTURAL UNIT STRUCTURAL UNIT STRUCTURAL UNIT BEAM CLAMP OR HANGER CLAMP AS REQUIRED BY WEIGHT SUPPORTED RACEWAY, 1/2" THRU 6" RACEWAY, 1/2" THRU 6" NOTE: TIE WIRE SHALL NOT BE USED AS A COMPONENT OF ANY RACEWAY HANGER SYSTEM
