Electrical · E-EX2HY

Level 1 Ground Bar and Equipment Grounding Connections

About this detail

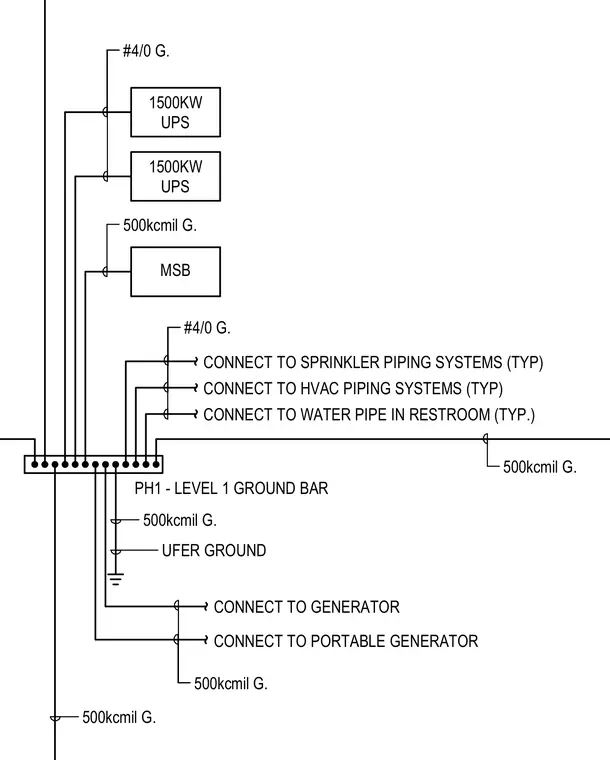

This electrical diagram shows the grounding connections for the Phase 1 Level 1 ground bar. Two one thousand five hundred kilowatt uninterruptible power supply units connect via number four zero ground conductors, and the main switchboard connects using a five hundred kcmil ground conductor. Additional grounding connections tie into the ufer ground, a portable generator, and the main generator. Piping systems including restroom water pipes, HVAC piping, and sprinkler piping are tied into the grounding bus typically with dedicated conductors.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
