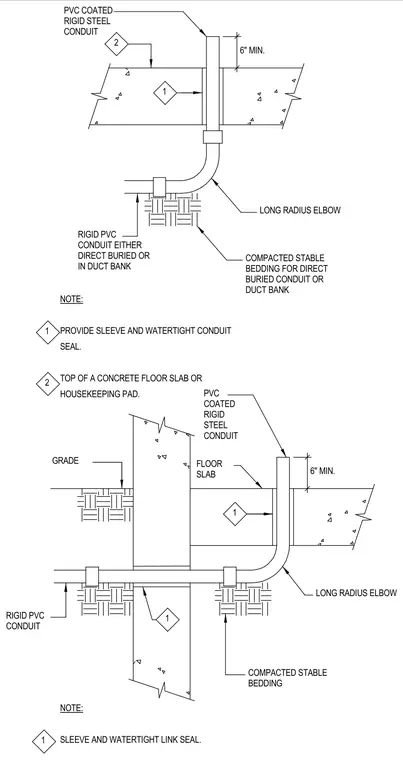

Electrical conduit stub-ups transition from rigid PVC conduit in direct burial or a duct bank through a concrete floor slab or wall to a PVC-coated rigid steel conduit stub. A long-radius elbow connects the horizontal underground run to the vertical penetration. Sleeves with watertight conduit seals or link seals are provided at all slab and wall penetrations. The steel conduit extends a minimum of six inches above the top of the concrete floor slab or housekeeping pad. Compacted stable bedding is placed beneath and around all direct-buried conduits and duct banks.
2 RIGID PVC CONDUIT EITHER DIRECT BURIED OR IN DUCT BANK PVC COATED RIGID STEEL CONDUIT LONG RADIUS ELBOW COMPACTED STABLE BEDDING FOR DIRECT BURIED CONDUIT OR DUCT BANK 6" MIN. NOTE: PROVIDE SLEEVE AND WATERTIGHT CONDUIT SEAL. TOP OF A CONCRETE FLOOR SLAB OR HOUSEKEEPING PAD. 1 1 GRADE RIGID PVC CONDUIT LONG RADIUS ELBOW 6" MIN. COMPACTED STABLE BEDDING PVC COATED RIGID STEEL CONDUIT FLOOR SLAB NOTE: SLEEVE AND WATERTIGHT LINK SEAL. 1 1 1 2
