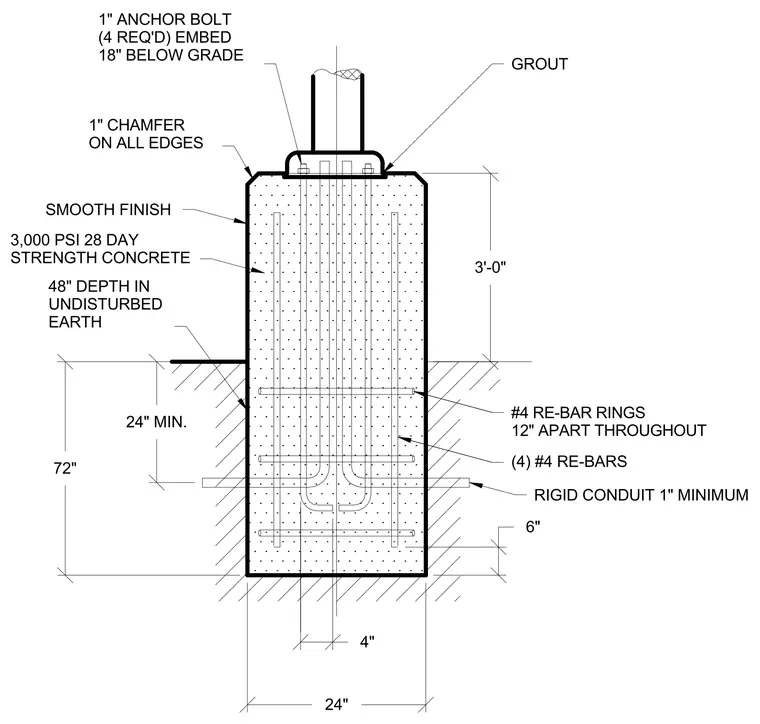

This concrete foundation support assembly anchors a vertical pole into a cast-in-place concrete pier resting in undisturbed earth. The structure utilizes three thousand PSI, twenty-eight-day strength concrete poured to a total depth of seventy-two inches with a twenty-four-inch minimum depth below grade. Reinforcement consists of four number four vertical rebar surrounded by number four rebar rings spaced twelve inches apart throughout the depth. A rigid conduit with a one-inch minimum diameter passes through the lower portion of the concrete pier. Four one-inch anchor bolts embedded eighteen inches below grade secure the base plate of the pole atop the pier with a layer of grout beneath. The top edges of the concrete feature a one-inch chamfer and a smooth finish.
1" ANCHOR BOLT (4 REQ'D) EMBED 18" BELOW GRADE 1" CHAMFER ON ALL EDGES SMOOTH FINISH 3,000 PSI 28 DAY STRENGTH CONCRETE RIGID CONDUIT 1" MINIMUM (4) #4 RE-BARS #4 RE-BAR RINGS 12" APART THROUGHOUT GROUT 3'-0" 6" 4" 24" 24" MIN. 72" 48" DEPTH IN UNDISTURBED EARTH
