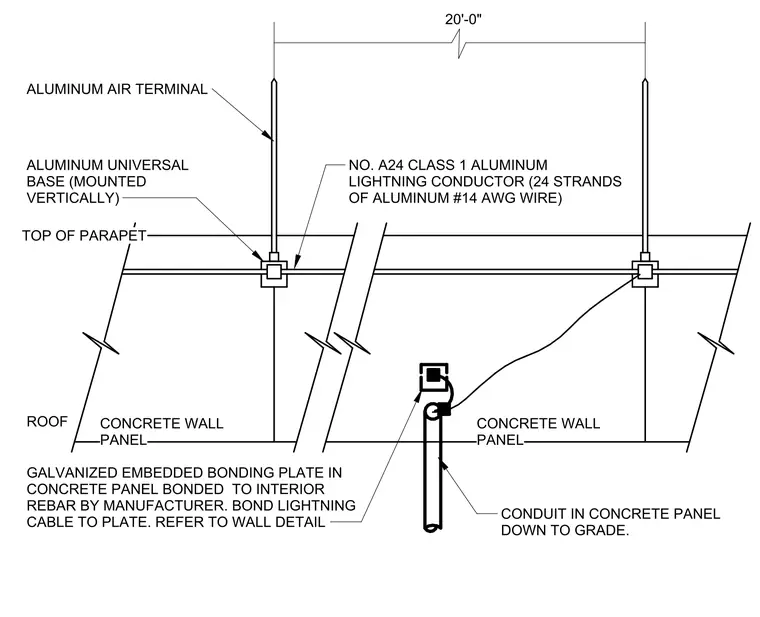

An aluminum air terminal No. A24 Class 1 is mounted vertically to a concrete wall panel parapet using an aluminum universal base. A class 1 aluminum lightning conductor consisting of twenty-four strands of aluminum fourteen American Wire Gauge wire connects to the base. The conductor ties into a galvanized embedded bonding plate in the concrete panel, which is factory bonded to the interior reinforcing bar. A conduit runs down through the concrete panel to grade for the grounding system.
ALUMINUM AIR TERMINAL NO. A24 CLASS 1 ALUMINUM LIGHTNING CONDUCTOR (24 STRANDS OF ALUMINUM #14 AWG WIRE) ALUMINUM UNIVERSAL BASE (MOUNTED VERTICALLY) GALVANIZED EMBEDDED BONDING PLATE IN CONCRETE PANEL BONDED TO INTERIOR REBAR BY MANUFACTURER. BOND LIGHTNING CABLE TO PLATE. REFER TO WALL DETAIL CONDUIT IN CONCRETE PANEL DOWN TO GRADE. ROOF TOP OF PARAPET 20'-0" CONCRETE WALL PANEL CONCRETE WALL PANEL
