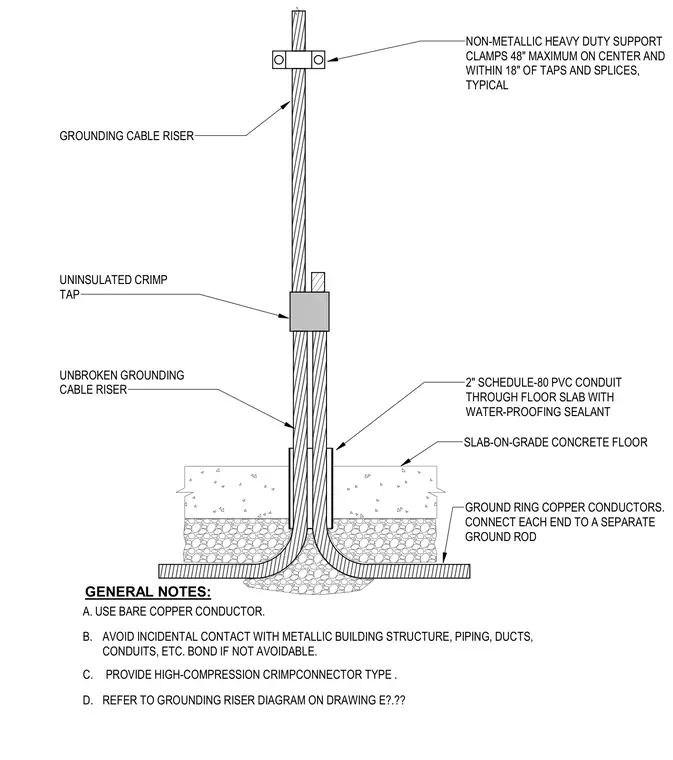

An uninsulated bare copper grounding cable riser passes through a concrete slab-on-grade inside a two-inch Schedule-80 polyvinyl chloride conduit equipped with waterproofing sealant. The cable is supported vertically by non-metallic heavy-duty support clamps spaced a maximum of forty-eight inches on center and within eighteen inches of taps and splices. An uninsulated high-compression crimp tap connects the riser to ground ring copper conductors that extend to separate ground rods. The installation requires avoiding incidental contact with metallic building elements or bonding where contact is unavoidable.
GROUND RING COPPER CONDUCTORS. CONNECT EACH END TO A SEPARATE GROUND ROD 2" SCHEDULE-80 PVC CONDUIT THROUGH FLOOR SLAB WITH WATER-PROOFING SEALANT NON-METALLIC HEAVY DUTY SUPPORT CLAMPS 48" MAXIMUM ON CENTER AND WITHIN 18" OF TAPS AND SPLICES, TYPICAL GROUNDING CABLE RISER UNINSULATED CRIMP TAP UNBROKEN GROUNDING CABLE RISER A. USE BARE COPPER CONDUCTOR. B. AVOID INCIDENTAL CONTACT WITH METALLIC BUILDING STRUCTURE, PIPING, DUCTS, CONDUITS, ETC. BOND IF NOT AVOIDABLE. C. PROVIDE HIGH-COMPRESSION CRIMPCONNECTOR TYPE . D. REFER TO GROUNDING RISER DIAGRAM ON DRAWING E?.?? SLAB-ON-GRADE CONCRETE FLOOR GENERAL NOTES:
