A solid cable tray with a continuous solid cover is suspended below an overhead structural unit such as a beam, joist, or slab using Unistrut channels and all-thread rods sized as required by the supported weight. All-thread rods secure the upper Unistrut channel to the structural unit. A bolted connection through the center of the bottom Unistrut channel supports the cable tray assembly.

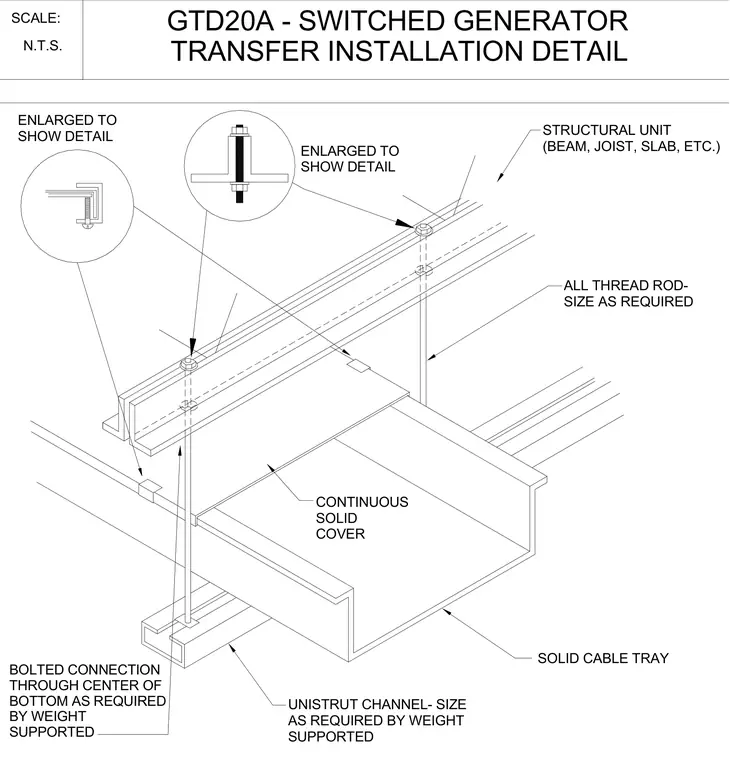

SCALE: N.T.S. GTD20A - SWITCHED GENERATOR TRANSFER INSTALLATION DETAIL STRUCTURAL UNIT (BEAM, JOIST, SLAB, ETC.) ALL THREAD ROD- SIZE AS REQUIRED UNISTRUT CHANNEL- SIZE AS REQUIRED BY WEIGHT SUPPORTED SOLID CABLE TRAY CONTINUOUS SOLID COVER ENLARGED TO SHOW DETAIL ENLARGED TO SHOW DETAIL BOLTED CONNECTION THROUGH CENTER OF BOTTOM AS REQUIRED BY WEIGHT SUPPORTED
