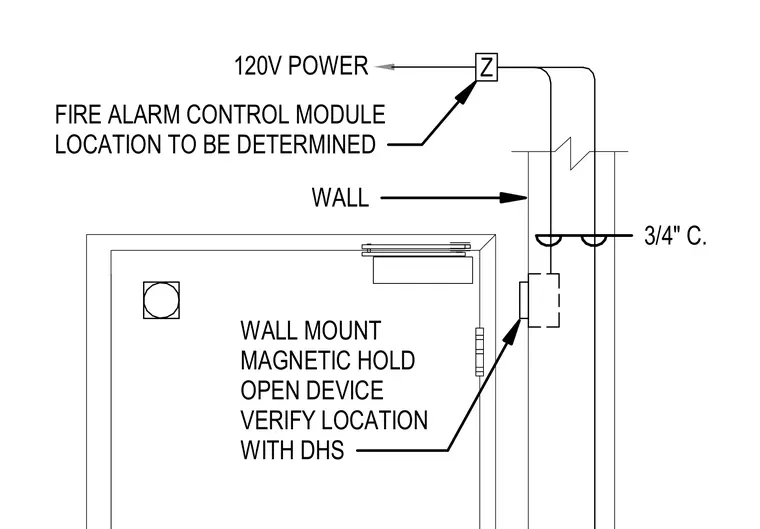

A fire alarm control module connects to 120-volt power routed through a three-quarter-inch conduit inside the wall. A wall mount magnetic hold open device installs adjacent to the door assembly with its precise location verified with the Department of Homeland Security.
120V POWER FIRE ALARM CONTROL MODULE LOCATION TO BE DETERMINED Z WALL 3/4" C. WALL MOUNT MAGNETIC HOLD OPEN DEVICE VERIFY LOCATION WITH DHS
