Power raceways and conduits are bedded in sand over a compacted trench subgrade with a thirty-six inch minimum depth of bury below finished grade. Traceable marker tape is laid for the entire length at least three inches wide and twelve inches below the finished grade. Communication raceways are separated by a minimum of twelve inches horizontally from power conduits. The trench is filled with structural backfill compacted to ninety percent density, excluding any rocks over six inches in diameter.

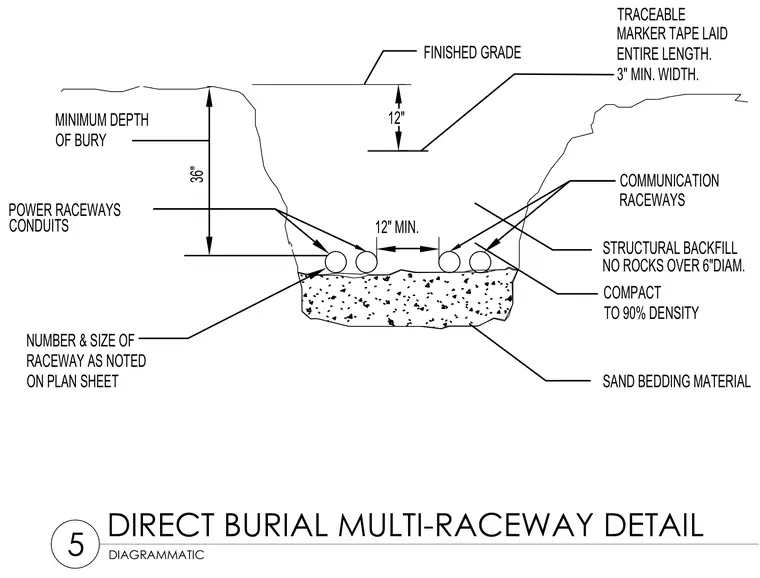

ON PLAN SHEET NUMBER & SIZE OF RACEWAY AS NOTED 36" MINIMUM DEPTH OF BURY 12" FINISHED GRADE TO 90% DENSITY SAND BEDDING MATERIAL MARKER TAPE LAID 3" MIN. WIDTH. ENTIRE LENGTH. STRUCTURAL BACKFILL COMPACT NO ROCKS OVER 6"DIAM. 12" MIN. POWER RACEWAYS CONDUITS TRACEABLE COMMUNICATION RACEWAYS DIAGRAMMATIC 5 DIRECT BURIAL MULTI-RACEWAY DETAIL
