Electrical · E-EK5BK

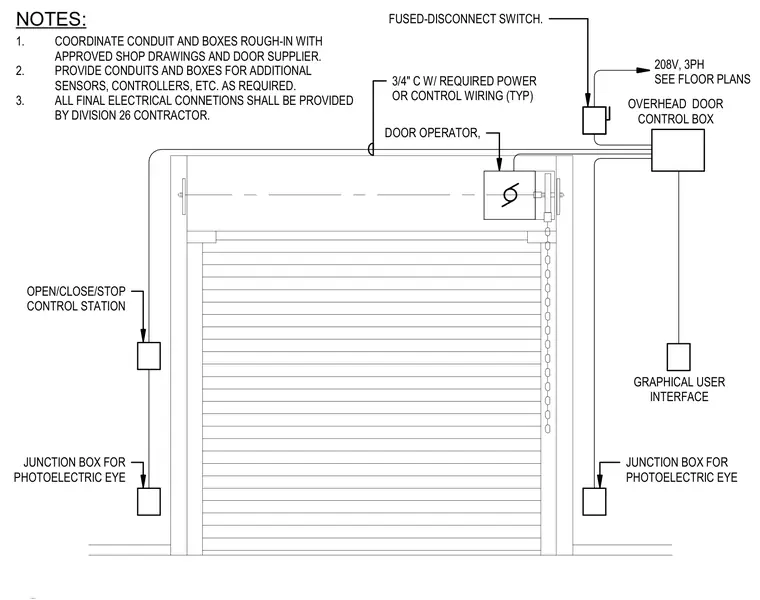

Overhead Door Electrical Control Diagram

Elements

About this detail

An overhead door control box receives power from a 208-volt, 3-phase fused-disconnect switch and links to a graphical user interface and motor operator. A three-button open, close, and stop control station connects alongside photoelectric eye junction boxes mounted vertically at each side of the door jamb. A three-quarter-inch conduit with required power or control wiring runs typically to the door operator and control boxes. Conduit and box rough-ins coordinate with approved shop drawings and the door supplier, with all final electrical connections provided by the Division 26 contractor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
