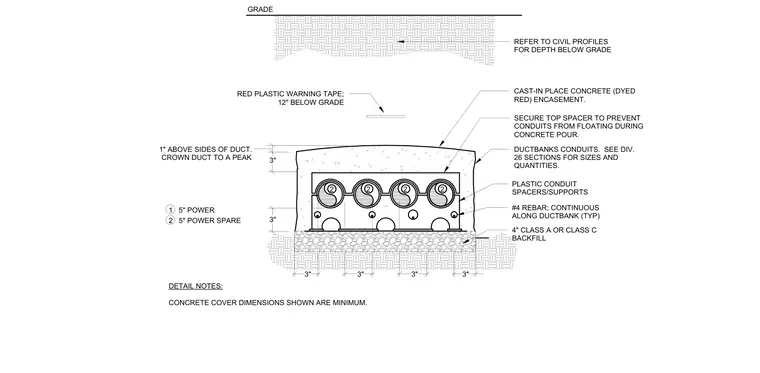

An underground electrical power ductbank is encased in a three-inch minimum layer of cast-in-place concrete that is dyed red for identification. The assembly houses a four-by-one configuration of conduits supported by plastic conduit spacers and secured with top spacers to prevent floating during the concrete pour. Continuous number four rebar runs longitudinally along the ductbank. The concrete encasement features a crowned top extending one inch above the sides of the duct. A red plastic warning tape is positioned twelve inches below grade directly above the concrete encasement. The entire assembly rests on a four-inch layer of Class A or Class C backfill.
3" 3" CAST-IN PLACE CONCRETE (DYED RED) ENCASEMENT. SECURE TOP SPACER TO PREVENT CONDUITS FROM FLOATING DURING CONCRETE POUR. DUCTBANKS CONDUITS. SEE DIV. 26 SECTIONS FOR SIZES AND QUANTITIES. #4 REBAR; CONTINUOUS ALONG DUCTBANK (TYP) 4" CLASS A OR CLASS C BACKFILL PLASTIC CONDUIT SPACERS/SUPPORTS DETAIL NOTES: CONCRETE COVER DIMENSIONS SHOWN ARE MINIMUM. RED PLASTIC WARNING TAPE; 12" BELOW GRADE 3" 3" 1 5" POWER 2 5" POWER SPARE GRADE REFER TO CIVIL PROFILES FOR DEPTH BELOW GRADE 2 2 2 2 3" 1" ABOVE SIDES OF DUCT. CROWN DUCT TO A PEAK 3"
