Electrical · E-EDJFR

Card Access Control Door Wiring and Hardware Detail

Elements

About this detail

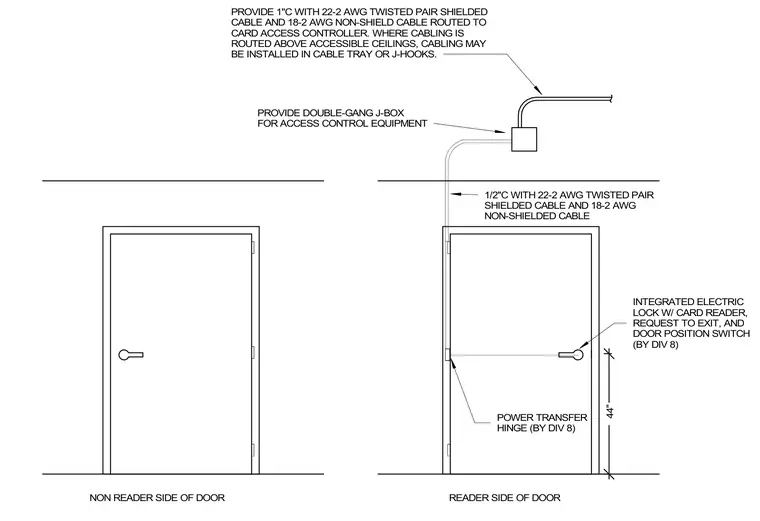

Provide a 1-inch conduit with 22-gauge two-conductor twisted pair shielded cable and 18-gauge two-conductor non-shielded cable routed to the card access controller. Where cabling is routed above accessible ceilings, cabling may be installed in a cable tray or J-hooks. Provide a double-gang junction box for access control equipment on the non-reader side of the door. Run a 1/2-inch conduit with 22-gauge two-conductor twisted pair shielded cable and 18-gauge two-conductor non-shielded cable down to the reader side of the door at 44 inches. Coordinate with Division 8 for the power transfer hinge and integrated electric lock with card reader, request to exit, and door position switch.
