Electrical · E-ECFY8

Fire Alarm Mounting Details

Elements

About this detail

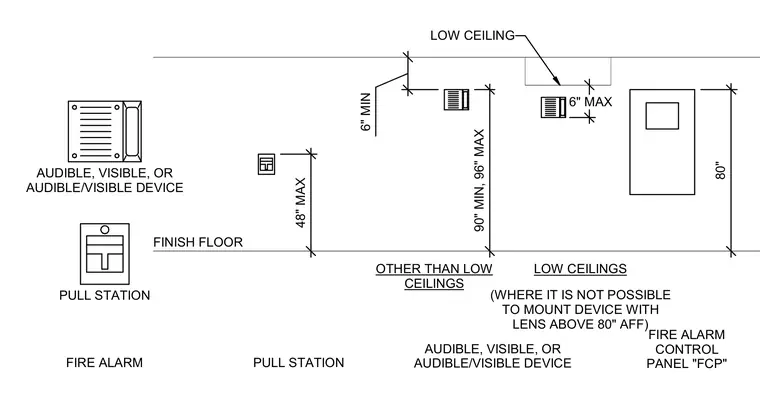

Fire alarm pull stations, audible and visible notification appliances, and the fire alarm control panel are mounted at specific heights above the finish floor. Pull stations are located at a maximum of forty-eight inches above the finish floor. Audible, visible, or combined audible and visible notification devices are mounted between ninety inches minimum and ninety-six inches maximum above the finish floor in spaces other than low ceilings. In low ceilings where it is not possible to mount the device with the lens above eighty inches above the finish floor, the device is installed with a maximum six-inch clearance from the ceiling. The fire alarm control panel is mounted with the top of the cabinet at eighty inches above the finish floor.
