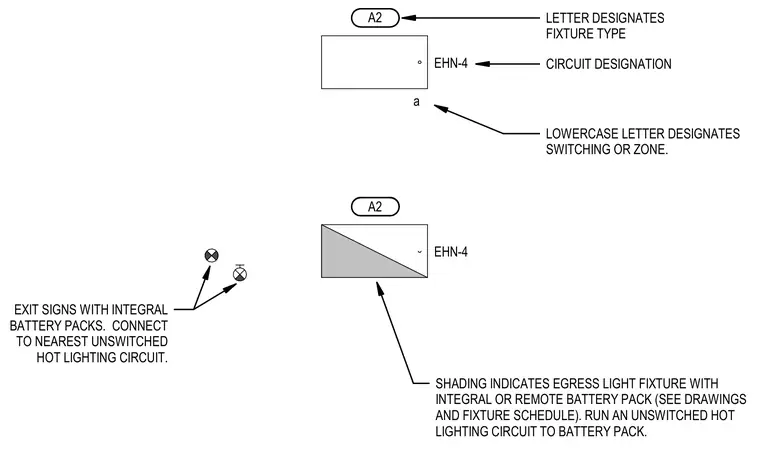

Light fixture labels incorporate an uppercase letter designation for the fixture type in a bubble above the symbol, a circuit designation such as EHN-4, and a lowercase letter designation for switching or zoning. Shading on the fixture symbol indicates an egress light fixture with an integral or remote battery pack. An unswitched hot lighting circuit must be run directly to the battery pack for exit signs and emergency egress fixtures.
a SHADING INDICATES EGRESS LIGHT FIXTURE WITH INTEGRAL OR REMOTE BATTERY PACK (SEE DRAWINGS AND FIXTURE SCHEDULE). RUN AN UNSWITCHED HOT LIGHTING CIRCUIT TO BATTERY PACK. EXIT SIGNS WITH INTEGRAL BATTERY PACKS. CONNECT TO NEAREST UNSWITCHED HOT LIGHTING CIRCUIT. EHN-4 A2 A2 LETTER DESIGNATES FIXTURE TYPE LOWERCASE LETTER DESIGNATES SWITCHING OR ZONE. CIRCUIT DESIGNATION EHN-4
