Transformer Equipment Identification Nameplate Layout

About this detail

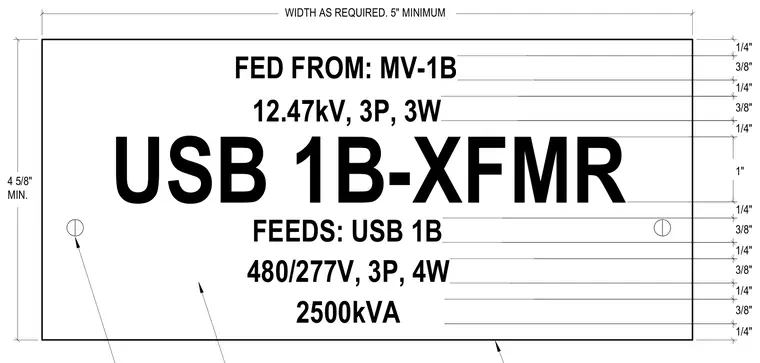

An electrical equipment nameplate layout and dimensional requirements plaque specifies the equipment designation as USB 1B-XFMR, with a capacity of 2500kVA. A medium-voltage feed from MV-1B at 12.47 kilovolts, three-phase, three-wire is indicated. Downstream distribution feeding USB 1B at 480/277 volts, three-phase, four-wire is also noted. Dimensional spacing and mounting hole locations are provided with a minimum height of four and five-eighths inches and a variable width of five inches minimum.
