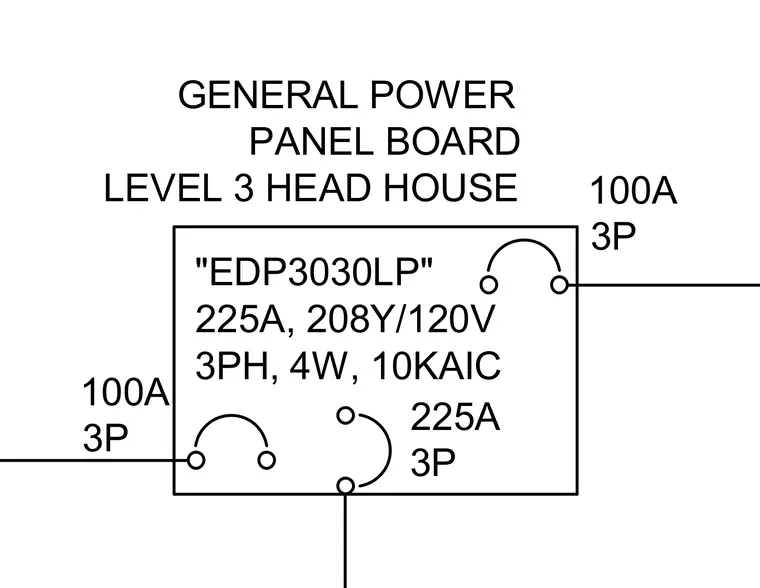

General power panel board EDP3030LP is rated at 225 amperes, 208Y/120 volts, 3-phase, 4-wire with a 10 kAIC fault current rating. The panel includes breaker configurations of 225A 3P and multiple 100A 3P circuits.
GENERAL POWER PANEL BOARD LEVEL 3 HEAD HOUSE "EDP3030LP" 225A, 208Y/120V 3PH, 4W, 10KAIC 225A 3P 100A 3P 100A 3P
