Electrical · E-E6D2K

Existing Low Voltage Switchgear One Line Demolition Plan

About this detail

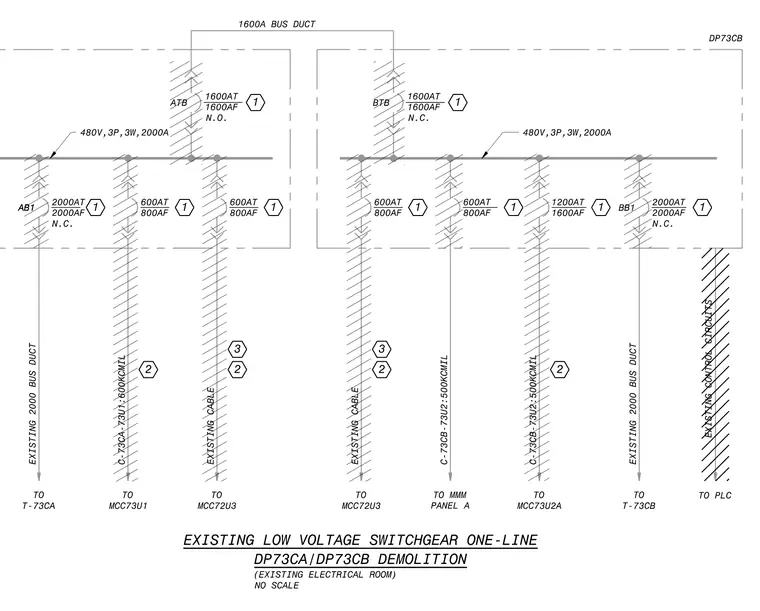

This electrical demolition diagram outlines the existing low voltage switchgear configuration for panels DP73CA and DP73CB operating at 480V, 3-phase, 3-wire, 2000A. The drawing indicates existing 2000A bus ducts, 1600A bus ducts, and specific feeder circuits including 500KCMIL cables feeding motor control centers and transformers. Breakers are designated with various trip and frame ratings such as 600AT/800AF, 1200AT/1600AF, and 2000AT/2000AF along with normally open and normally closed statuses. Feeders connect to existing control circuits, panels, and equipment locations throughout the electrical room.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
