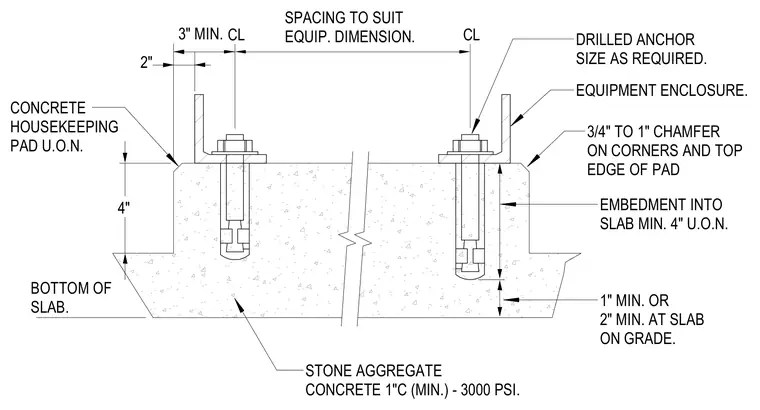

An equipment enclosure sits atop a four-inch concrete housekeeping pad cast with three-thousand PSI stone aggregate concrete unless noted otherwise. The pad features a three-quarter-inch to one-inch chamfer on its top edges and corners. Drilled anchors secure the equipment enclosure base to the concrete pad, spaced according to equipment dimensions with a minimum two-inch or three-inch clearance from edges. The pad embeds a minimum of four inches into the structural slab, maintaining a minimum one-inch or two-inch clearance at slabs on grade.
SPACING TO SUIT EQUIP. DIMENSION. 3" MIN. CL CL 2" DRILLED ANCHOR SIZE AS REQUIRED. EQUIPMENT ENCLOSURE. 3/4" TO 1" CHAMFER ON CORNERS AND TOP EDGE OF PAD EMBEDMENT INTO SLAB MIN. 4" U.O.N. 1" MIN. OR 2" MIN. AT SLAB ON GRADE. STONE AGGREGATE CONCRETE 1"C (MIN.) - 3000 PSI. 4" BOTTOM OF SLAB. CONCRETE HOUSEKEEPING PAD U.O.N.
