Main Distribution Switchboard (4D1)

Materials

Connections

About this detail

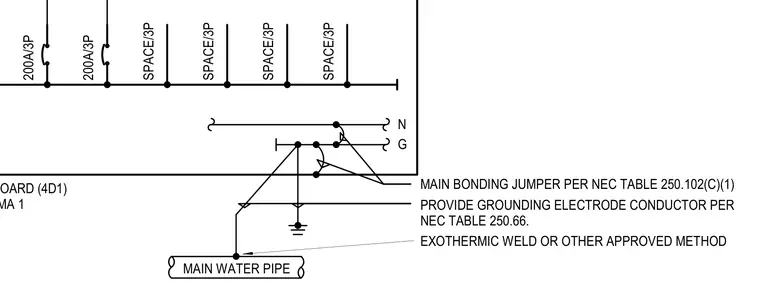

The main distribution switchboard is configured with a two thousand ampere, 480Y/277 volt, three-phase, four-wire setup in a NEMA 1 enclosure. A main bonding jumper is sized per National Electrical Code Table 250.102(C)(1) connecting neutral and ground. A grounding electrode conductor is provided per National Electrical Code Table 250.66. Connection to the main water pipe utilizes an exothermic weld or other approved method.
