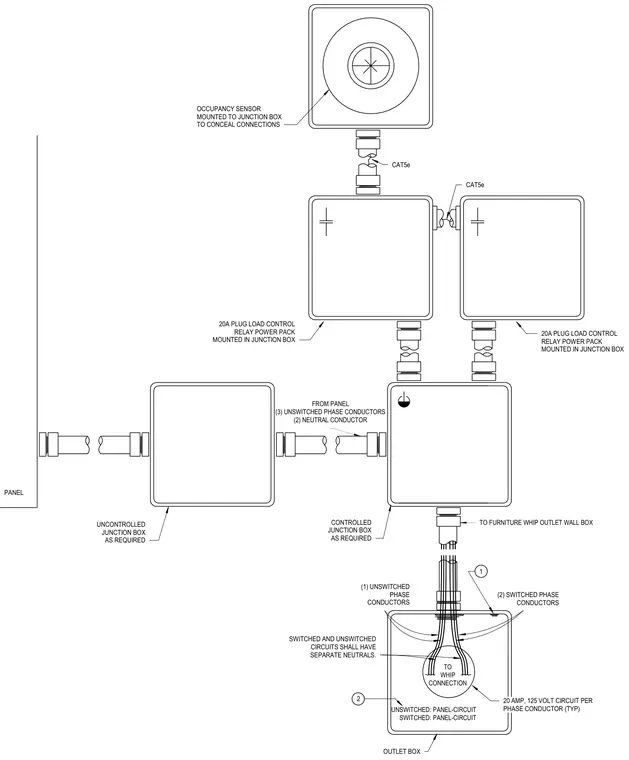

A controlled systems furniture electrical connection with three circuits requiring separate neutrals for switched and unswitched outlets. Power runs from the panel through an uncontrolled junction box into a controlled junction box housing a twenty-ampere plug load control relay power pack. From the controlled junction box, connections extend to an occupancy sensor mounted to conceal connections via Cat5e cabling and to an outlet box via a furniture whip. The outlet box receives one unswitched phase conductor and two switched phase conductors rated at twenty amperes and one hundred twenty-five volts per phase conductor typically.
OUTLET BOX 1 SWITCHED AND UNSWITCHED CIRCUITS SHALL HAVE SEPARATE NEUTRALS. (1) UNSWITCHED PHASE CONDUCTORS 20 AMP, 125 VOLT CIRCUIT PER PHASE CONDUCTOR (TYP) (2) SWITCHED PHASE CONDUCTORS TO WHIP CONNECTION TO FURNITURE WHIP OUTLET WALL BOX UNSWITCHED: PANEL-CIRCUIT SWITCHED: PANEL-CIRCUIT 2 UNCONTROLLED JUNCTION BOX AS REQUIRED PANEL FROM PANEL (3) UNSWITCHED PHASE CONDUCTORS (2) NEUTRAL CONDUCTOR 20A PLUG LOAD CONTROL RELAY POWER PACK MOUNTED IN JUNCTION BOX CONTROLLED JUNCTION BOX AS REQUIRED OCCUPANCY SENSOR MOUNTED TO JUNCTION BOX TO CONCEAL CONNECTIONS CAT5e 20A PLUG LOAD CONTROL RELAY POWER PACK MOUNTED IN JUNCTION BOX CAT5e
