Electrical · E-DZCY2

Standby Systems Elevator Automatic Transfer Switch with Bypass Isolation Switch

About this detail

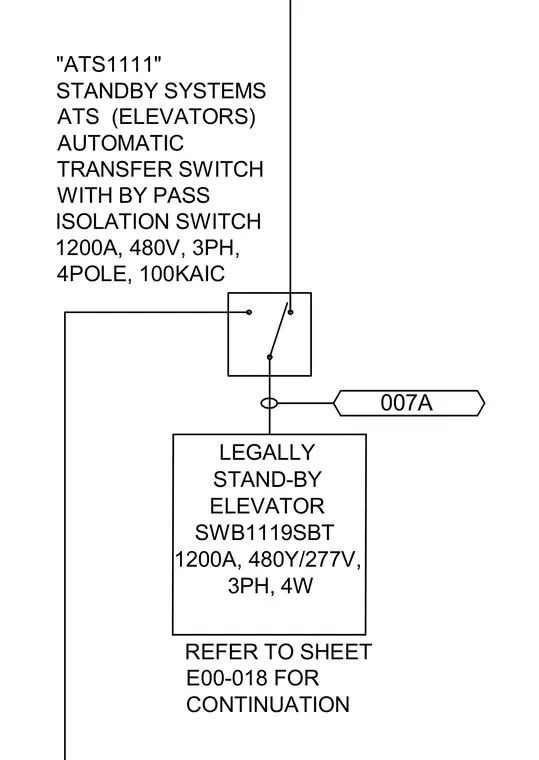

An automatic transfer switch with bypass isolation switch is rated at 1200 amperes, 480 volts, 3-phase, 4-pole with 100kAIC. It serves legally standby elevator switchboard SWB1119SBT rated at 1200 amperes, 480Y/277 volts, 3-phase, 4-wire. The equipment is designated as ATS1111 with continuation referenced to sheet E00-018.
