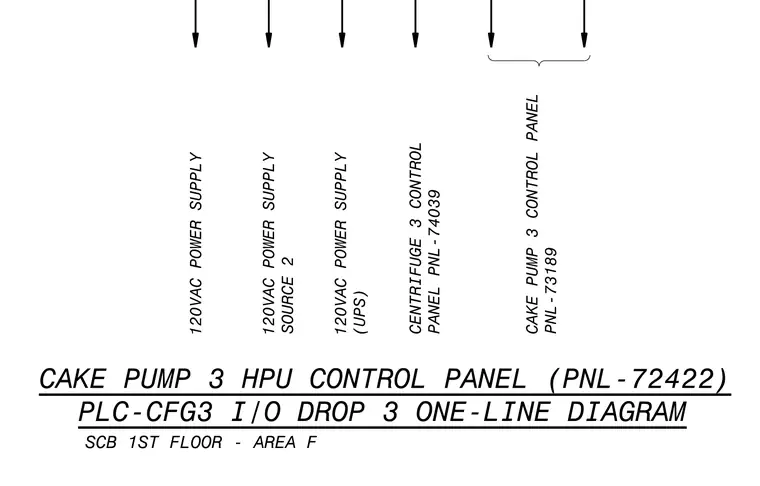

This one-line diagram details the electrical configuration for the cake pump 3 HPU control panel PLC-CFG3 I/O drop 3 located in the SCB 1st floor area F. The drawing maps out power supply feeds including standard 120VAC power supply, backup 120VAC power supply source 2, and 120VAC UPS power supply. Feeds also connect to centrifuge 3 control panel PNL-74039 and cake pump 3 control panel PNL-73189.
CAKE PUMP 3 HPU CONTROL PANEL (PNL-72422) PLC-CFG3 I/O DROP 3 ONE-LINE DIAGRAM SCB 1ST FLOOR - AREA F CAKE PUMP 3 CONTROL PANEL PNL-73189 CENTRIFUGE 3 CONTROL PANEL PNL-74039 120VAC POWER SUPPLY (UPS) 120VAC POWER SUPPLY SOURCE 2 120VAC POWER SUPPLY
