Electrical · E-DZB8N

Main Bus Size If Main Lugs Only

About this detail

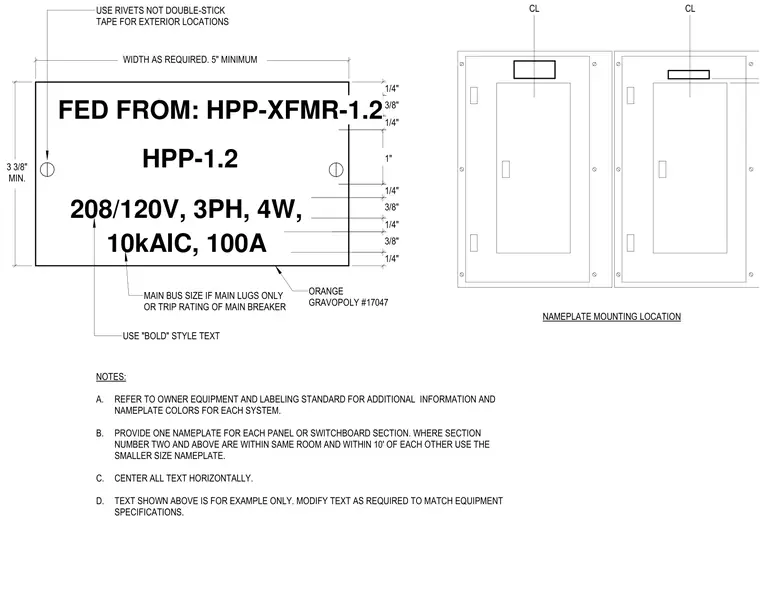

This electrical diagram specifies the layout, sizing, and text requirements for equipment nameplates mounted on switchboards and panels. The orange Gravopoly #17047 nameplate features bold-style text centered horizontally, with dimensions calling for a five-inch minimum width and three-and-three-eighths-inch minimum height. The label layout includes text lines for source feeding designation, panel designation, voltage ratings including 208/120-volt three-phase four-wire, interrupting capacity of 10 kiloamperes alternating current, and main bus size or main breaker trip rating. Rivets are required instead of double-stick tape for exterior locations. Mounting locations on panel sections are indicated along with four general notes specifying owner standards, sizing rules for adjacent sections, and text modification instructions.
